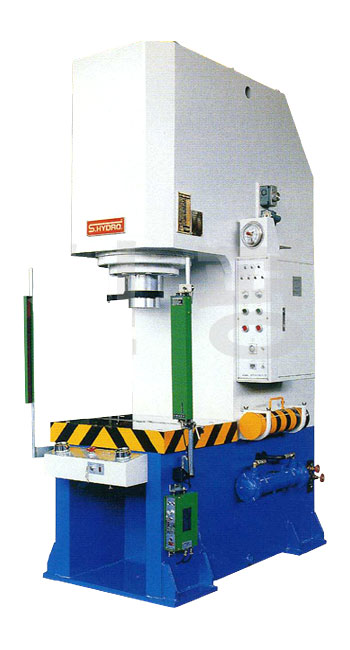

C-Type Hydraulic Press

SSP Form C-Type / High Speed Hydraulic Press


High Speed Hydraulic PRESS

This product is very simple for controlling RAM descending speed stroke and compressing force. Different applications as the pressure work is available without stroke position.

  1. Standard type (Both side switch operation)
  2. Special spec. (reducer, foot switch, auto cycle type and lever operating type)
  3. Custom production will be available for ordering over 50 tons.

Application

  1. For pressure and drawing of shaft and bushing lubricant
  2. Powdered alloy and synthetic performance
  3. For correction of different materials
  4. For assembling and dismantling of parts
  5. For cutting and punching materials
  6. Many other purposes for such as riveting and compression test, etc.

SPECIFICATION

Type Unit SPP-10 SPP-15 SPP-20 SPP-30 SPP-40 SPP-50
Pressure capacity Ton 10 15 20 30 40 50
Minimum compression capacity Ton 1.5 2 2.5 10 10 10
Ascending capacity Ton 0.7 1 1 1.2 1.5 1.5
Cylinder inside mm 140 140 140 170 200 200
Cylinder stroke mm 200 250 300 350 400 400
RAM diameter mm 130 130 130 160 190 190
Open height mm 350 400 450 500 600 600
Table size mm 490x560 490x560 490x560 510x620 550x690 550x690
RAM speed Descending mm/sec 250 250 250 250 250 250
Pressure mm/sec 26 26 26 19 17 17
Ascending mm/sec 200 200 200 190 190 190
Motor Kw 3.7 5.5 7.5 7.5 11 11
Working pressure kg/§² 65 100 130 135 130 160
Pump discharge L/min 30 30 30 33 40 40
Tank capacity L 120 120 120 140 160 180
Machine size Height mm 1,940 2,040 2,140 2,340 2,530 2,530
Width mm 680 680 710 740 810 810
Length mm 1,250 1,250 1,250 1,350 1,500 1,500

Function & structure

When the high pressure generated from the compression pump is filled into the cylinder on the top of the press, powerful compression power is generated so the workpiece can be pressurized, endurable, formed and cut in the press quickly and precisely.
This product has a very simple structure with the compact size devices incorporating hydraulic pump, motor, cylinder and different valves, etc. into C type frame.

Standard RAM operation

  • 1. RAM high speed descending (Push button)
  • 2. RAM low speed compression (Auto)
  • 3. RAM high speed ascending (Push button)
  • RAM descending: Switch is on for both direction at the same time.
  • RAM stop: Switch is off for one of both direction.
  • RAM ascending: Switch is off for both direction at the same time.

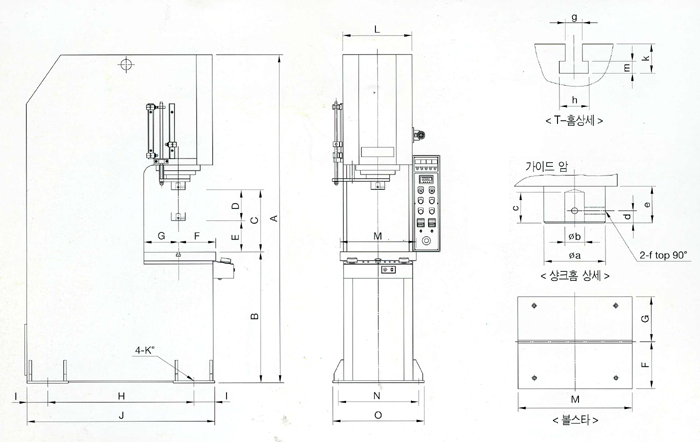

Dimention

SPP-10 SPP-15 SPP-20 SPP-30 SPP-40 SPP-50
A 1,990 2,090 2,190 2,340 2,530 2,530
B 800 800 800 800 800 800
C 350 400 450 500 600 600
D 200 250 300 350 400 400
E 150 150 150 150 200 200
F 250 250 250 260 280 280
G 240 240 240 250 270 270
H 1,000 1,000 1,000 1,100 1,250 1,250
I 125 125 125 125 125 125
J 1,250 1,250 1,250 1,350 1,500 1,500
K M24 M24 M24 M24 M30 M30
L 520 520 550 580 650 650
M 560 560 590 620 690 690
N 600 600 630 660 730 730
O 680 680 710 740 810 810
a 120 120 120 140 170 170
b 50 50 50 50 50 50
c 70 70 70 70 70 70
d 20 20 20 20 25 25
e 50 50 50 60 70 70
f M12X1.75P M12X1.75P M12X1.75P M12X1.75P M12X1.75P M12X1.75P
g 16 16 16 16 18 18
h 27 27 27 27 30 30
k 27 27 27 27 30 30
m 10.5 10.5 10.5 10.5 12 12
